VMware NSX – Backup & Restore VMware NSX Manager Data

(Last Updated On: March 18, 2015)

When comes to infrastructure systems, It is always a question of what will be recovery option. It is very normal that system may get crashed due to some issues. It will be always a question in the mind that how would we recover the system and what will be the backup stratergy. In repsonse to the NSX Manger, We can backup and restore the NSX Manager data from NSX Manager management web page. You can back up and restore your NSX Manager data, which can include system configuration, events, and audit log tables. Configuration tables are included in every backup. Backups are saved to a remote location that must be accessible by the NSX Manager. In this post, We will discuss about how to configure and schedule the NSX Manager data. Let’s take a look at the detailed step by step procedure to configure the NSX Manager backup & restore.

Backup NSX Manager Data:

Login to NSX Manager management page using the below URL:

https:<NSX-Manager IP_or Name>

In Home Page of NSX Manager,click Backups & Restore Under Appliance Management

NSX Manager-Backup & Restore_1

Click on Change to specify the FTP Server Settings to store the NSX Manager Backup files.

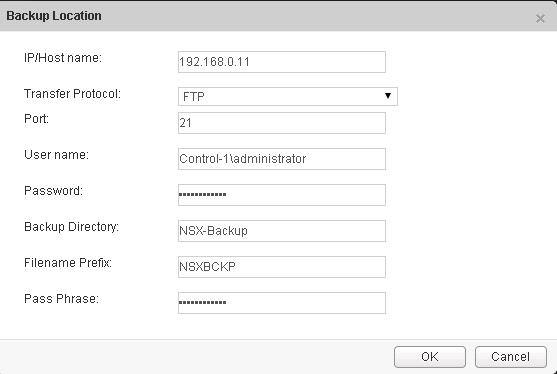

NSX Manager-Backup & Restore_2Enter the Below information to specify the NSX Manager Backup settings:

  • Enter the IP address or host name of the FTP server, which is going to store the backup files.
  • From the Transfer Protocol drop-down menu, select either SFTP or FTP, based on what the destination supports and Edit the default port if required.
  • Enter the user name and password which is required to login to the Backup System i.e FTP server
  • In the Backup Directory field, type the absolute path of the FTP Folder, where backups will be stored.
  • Type a text string in Filename Prefix. This text is prepended to each backup filename for easy recognition on the backup system. For example, if you type NSXBCKP, the resulting backup file will be  named as NSXBCKPHH_MM_SS_DayDDMonYYYY.
  • Type the pass phrase to secure the backup and Click OK.

NSX Manager-Backup & Restore_3

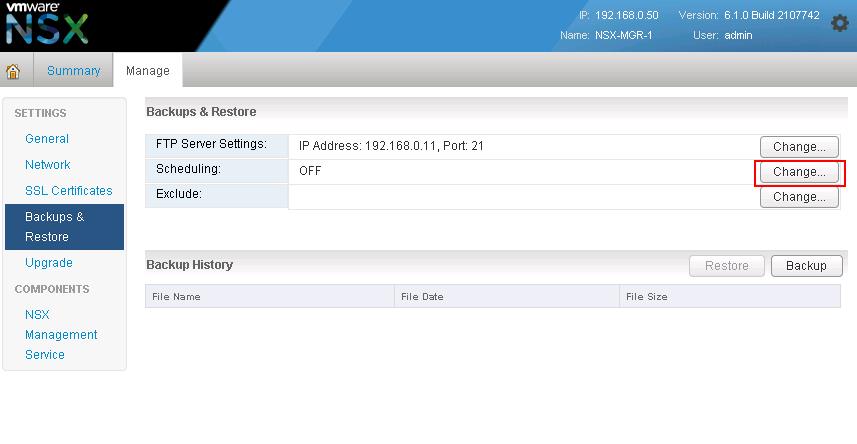

Click on Change next to Scheduling to schedule the backup of  NSX Manager Data.

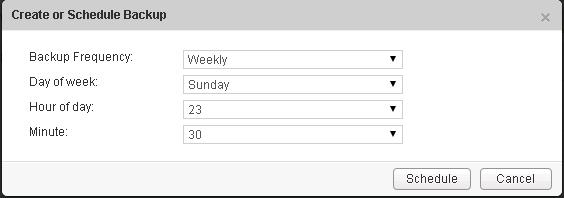

NSX Manager-Backup & Restore_4Specify the below details to Schedule the NSX Manager Data:

  • From the Backup Frequency drop-down menu, select Hourly, Daily, or Weekly based on your requirement. The Day of Week, Hour of Day, and Minute drop-down menus are disabled based on the selected frequency. For example, if you select Daily, the Day of Week drop-down menu is disabled as this field is not applicable to a daily frequency.
  • I prefer to do Weekly backup.For a weekly backup, select the day of the week and hour and Minute that the data should be backed up.
  • Click Schedule to save the NSX Manager backup schedule.

NSX Manager-Backup & Restore_5

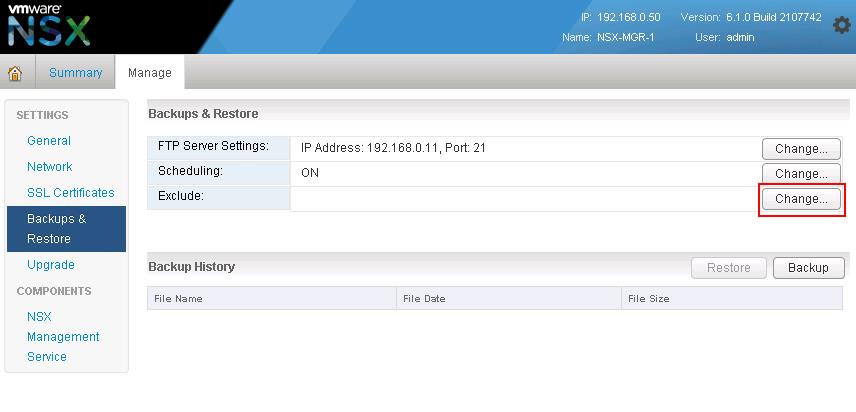

Click on Change settings for Exclude Option to exclude any of the data during NSX Manager Backup.

NSX Manager-Backup & Restore_6For Demo Purpose, I have excluded the Flow Records from the NSX Manager backup. and click on OK.

NSX Manager-Backup & Restore_7

All Backup Settings are configured. Click on Backup to initiate the immediate backup of NSX Manager.

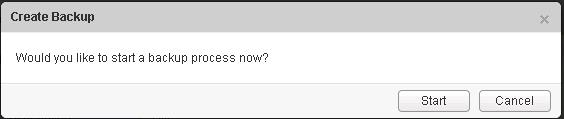

NSX Manager-Backup & Restore_8Click on Start to start the backup.

NSX Manager-Backup & Restore_9

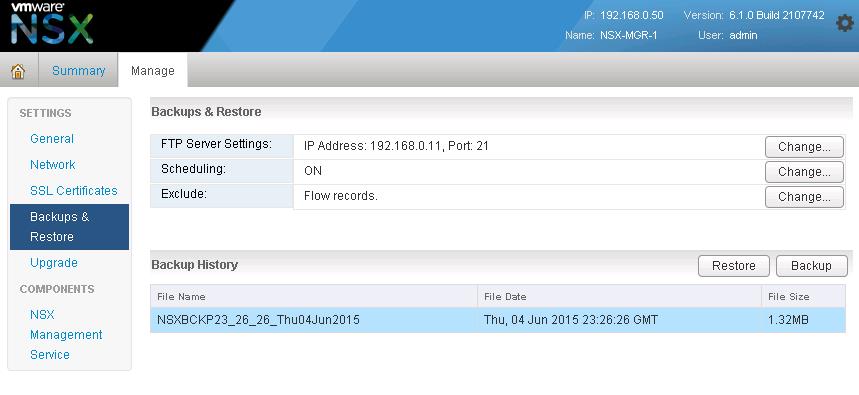

Once Backup is completed, You will be able to see the Last backup information like Filename, date and Size of the backup file.

NSX Manager-Backup & Restore_10



I can see the same information ,when i browse towards the FTP server backup directory.

NSX Manager-Backup & Restore_11



Restore NSX Manager Data:

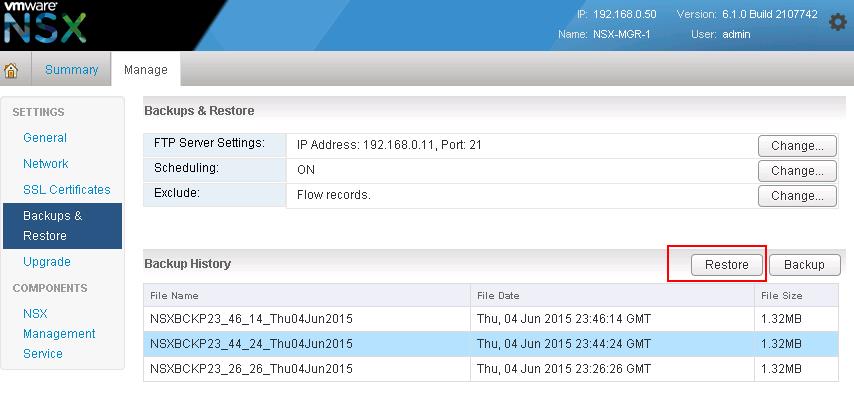

To Restore the NSX Manager Data, Select one of the Backup file and click on Restore option to restore the NSX Manager Data.

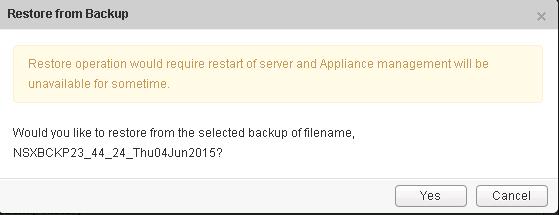

NSX Manager-Backup & Restore_12Restoring NSX Manager data will require restart of server and Appliance management will be unavailable for sometime. Click on Yes. That it.  NSX Manager Data will be restored.

NSX Manager-Backup & Restore_13That’s it.I hope this is informative for you. Thanks for Reading!!!. Be Social and Share it in social media, if you feel worth sharing it.
