VMware NSX – How to Manually Remove NSX VIBs from ESXi Host?

(Last Updated On: September 15, 2015)

As we already discussed many times, Job of vSphere Administrators is not so limited to GUI. You should be always available with troubleshoot your issues from command line or CLI.This also applies ,when you are dealing with VMware NSX. We have already discussed about manually installing NSX VIBS from CLI of ESXi host. There are some situation that the installation or Uninstallation of NSX VIB’s may fail due to some reason and we as vSphere admin should have to troubleshoot and fix the installation/Uninstallation issues. I have faced one of the issue, when i try to uninstall the NSX components from vSphere Web Client. Let’s take a detailed look at step by step procedure to manually remove NSX VIBs on the ESXi host.

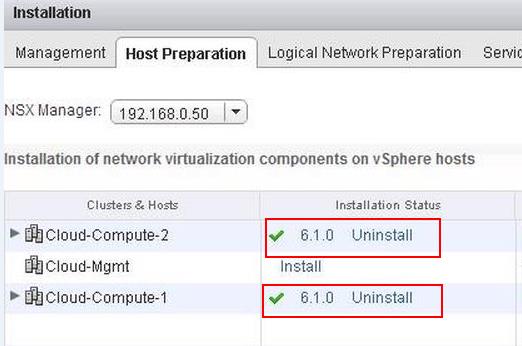

You can UnPrepare the Host/Cluster from vSphere Web Client -> Network & Security -> Installation ->Host Preparation -> Click on UnInstall to unprepare/ Uninstall the NSX VIBs from ESXi host.

Manually Remove NSX VIBS from ESXi_2Sometimes, The Uninstall step may get failed due to some communication issues. We should also be ready to manually remove the NSX VIBs installed on the ESXi host from Command Line. There are 3 VIBs related to NSX which we need to remove from the ESXi host.

  1. esx-vxlan
  2. esx-vsip
  3. esx-dvfilter-switch-security

One VIB enables the layer 2 VXLAN functionality, another VIB enables the distributed router, and the final VIB enables the distributed firewall.

Manually Remove NSX VIBs from ESXi Host:

Move your running Virtual Machines to differet host in the Cluster using vMotion. Place your ESXi Host into Maintenance Mode.

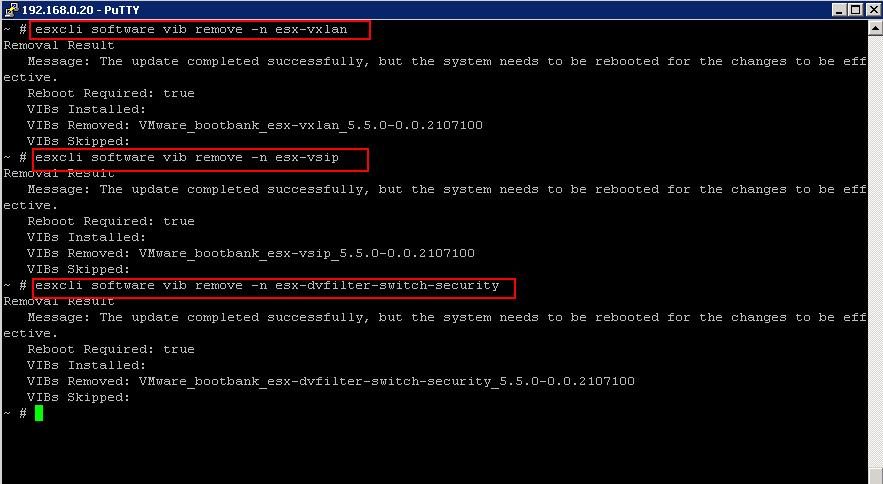

To remove the “esx-vxlan” VIB , execute the below command:

esxcli software vib remove -n esx-vxlan

To remove the “esx-vsip” VIB , execute the below command:

esxcli software vib remove -n esx-vsip

To remove the “esx-dvfilter-switch-security” VIB , execute the below command:

esxcli software vib remove -n  esx-dvfilter-switch-security

Manually Remove NSX VIBS from ESXi_1Once you have removed all the 3 NSX VIBs, Reboot the ESXi host for the Changes to take effect. I hope this is informative for you. Thanks for Reading !!!. Be Social and share it in social media, if you feel worth sharing it.
