VMware Site Recovery Manager (SRM 6.0) Part 13 – Cleaning up Test Recovery

(Last Updated On: December 12, 2015)

Once your test recovery is completed and you have validated that your recovery plan is working as expected. You can run a recovery plan cleanup. Recovery plan cleanup returns virtual machines to their initial state before the recovery plan test was run. The recovery plan is reset to a ready state. You can run a forced cleanup, if you experience errors during a recovery plan.
Recovery Plan Cleanup has series of steps and below are the cleanup steps:

  • Test virtual machines that were started during recovery plan testing are powered off.
  • Virtual machines that were suspended during the recovery plan test are resumed.
  • The recovery site storage is reset to the pre-test state.
  • Placeholder virtual machines are restored.
  • Replicated storage snapshots that were used by the virtual machines during the test are discarded.

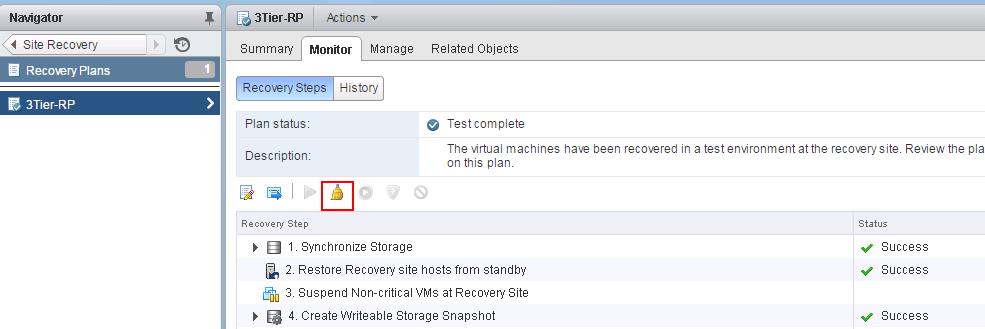

To Cleanup the test recovery, Click on the Brush symbol under Recovery plan -> Monitor -> Recovery steps to clean up the recent test recovery.

VMware SRM- Running Test Recovery Cleanup_1

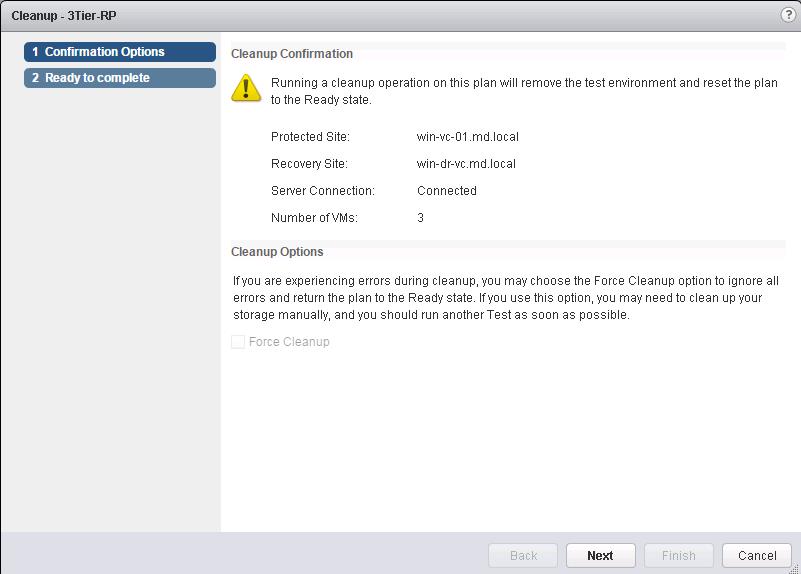

Running a cleanup operation on this plan will remove the test environment and remove the test environment and reset the plan to ready state.  Click on Next after reading the Cleanup Confirmation.

VMware SRM- Running Test Recovery Cleanup_2

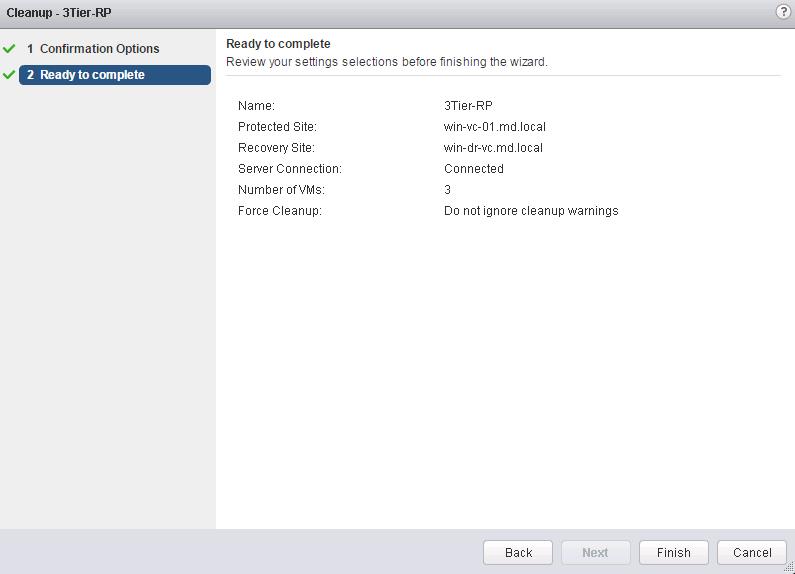

Review the clean information and click on Finish to start the start the Recovery test cleanup.

VMware SRM- Running Test Recovery Cleanup_3

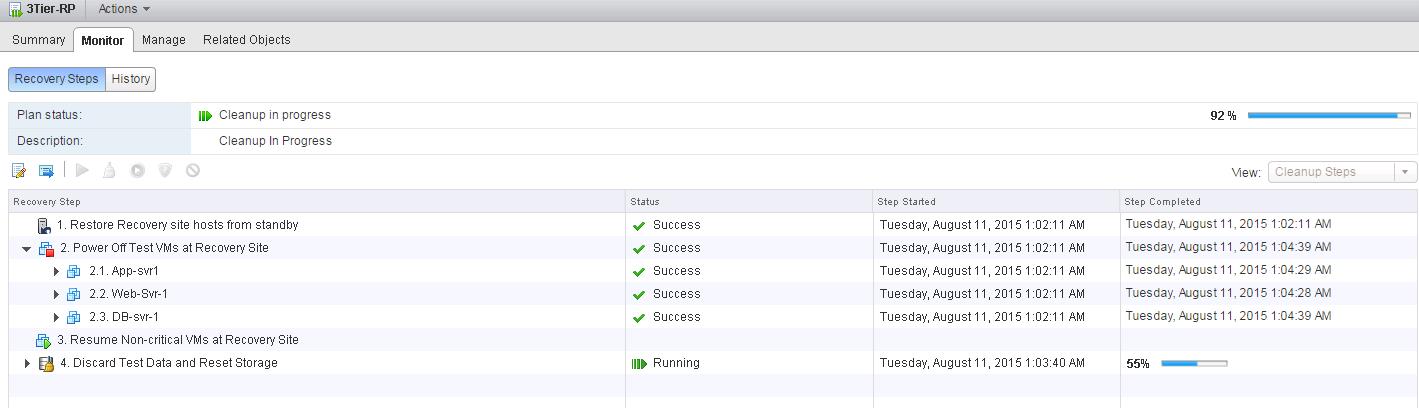

Monitor the progress of the test recovery cleanup process.

VMware SRM- Running Test Recovery Cleanup_4

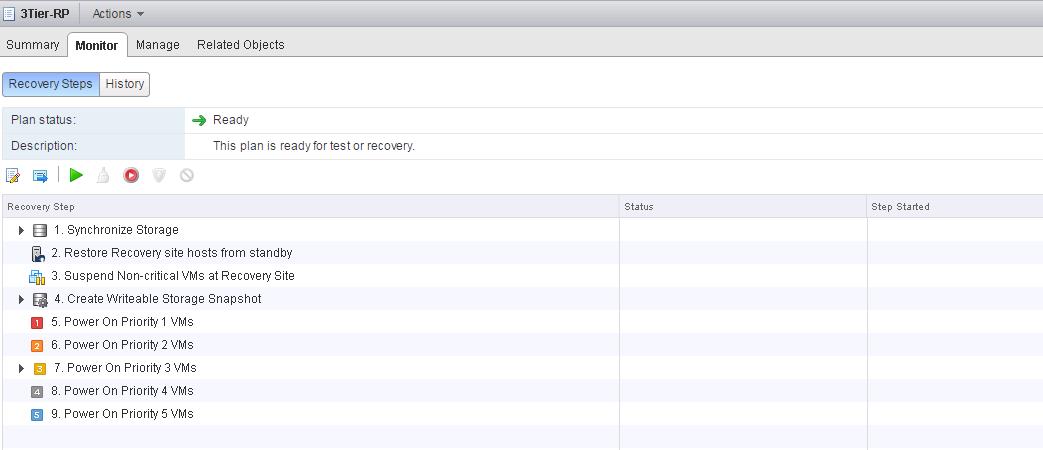

Recovery plan cleanup returns virtual machines to their initial state before the recovery plan test was run and it reset it to “Ready” state.

VMware SRM- Running Test Recovery Cleanup_5

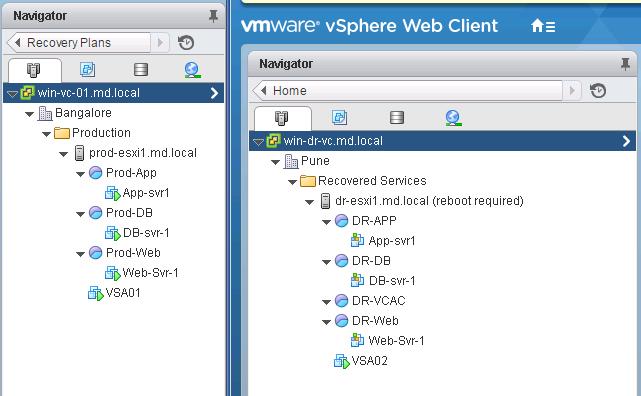

You can notice that Virtual machines recovered as part of the test recovery in recovered site are in powered off  state now. All done. Recovery plan is ready to test again.

VMware SRM- Running Test Recovery Cleanup_6

That’s it. We are done with cleaning up our test recovery and recovery plan is ready to test again or for actual recovery. I hope this is informative for you. Thanks for reading !!!!. Be social and share it in social media, if you feel worth sharing it.
