VSAN Setup in VMware Workstation Part 3 – Fake ESXi Local Disk as SSD

One of the most import prerequisite for VSAN configuration is local disk and SSD. Minimum of 3 ESXi 5.5 hosts with all contributing local disks (1 SSD and 1 HDD) to VSAN cluster and atleast 1 SAS or SATA solid state Drive (SSD) should be part of each ESXi host with SSD is not claimed by vSphere Flash Read Cache. This posts explains you with the procedure to setup VSAN using VMware Workstation but how do you use SSD. This complete post series talk about setting up VSAN lab feasible for everyone. All my ESXi hosts are running on top of the VMware Workstation. So i don’t have SSD for that. Will it stop me to setup my VSAN lab on workstation. Definetly No. Ohh.. Then  how do i use SSD (important pre-requisite for VSAN configuration). Don’t worry. There is a option to fake your ESXi hosts local disk as SSD. Thanks and all credit goes to William Lam for his excellent post about faking the ESXi local disks as SSD. Let’s see the detailed step by step procedure to configure this bypass.

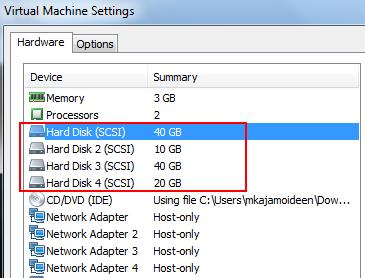

Below is the disk configuration of all the 3 ESXi hosts running on VMware Workstation.

4 Local Disks created on the VMware Workstation

Disk 1 – 40 GB (Local Datastore and ESXi install disk)
Disk 2 – 10 GB (Going to fake this disk as SSD)
Disk 3 – 40 GB
Disk 4 – 20 GB

VSAN_Disk_1

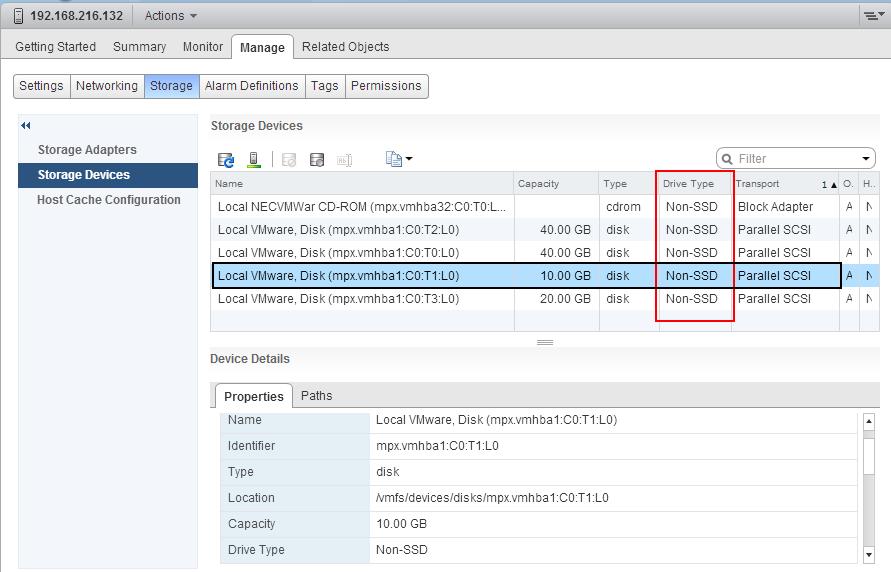

Below is the disk layout of my ESXi host. You can notice that none of the below disks are SSD. So it is not yet eligible for VSAN cluster.

VSAN_Disk_2From the above list of 4 disks, None of them are SSD and all are local disks created using VMware Workstation. I am going fake one of the  local disk “mpx.vmhba1:C0:T1:L0” with the capacity of 10.00 GB as SSD. Let’s take the detailed procedure to configure it. This step needs to configured on all the 3 ESXi hosts since minimum one SSD disk from each ESXi host is the pre-requisite for VSAN cluster.

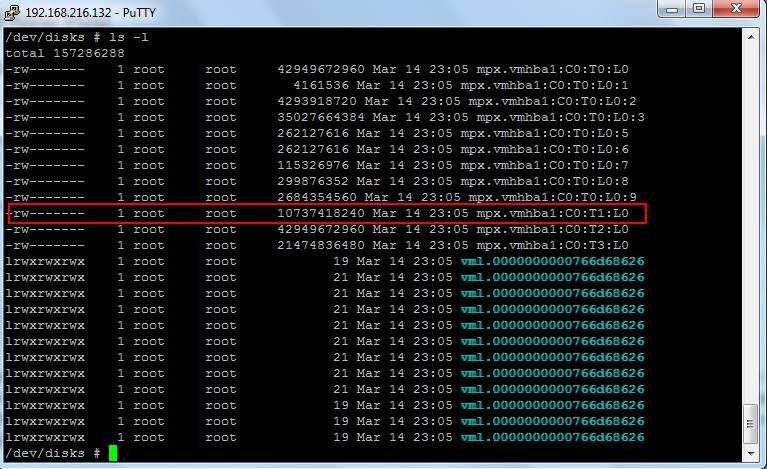

Connect to your ESXi host using SSH connection such as Putty.  You can list the disks in your ESXi host using the below command

ls -l /vmfs/devices/disks

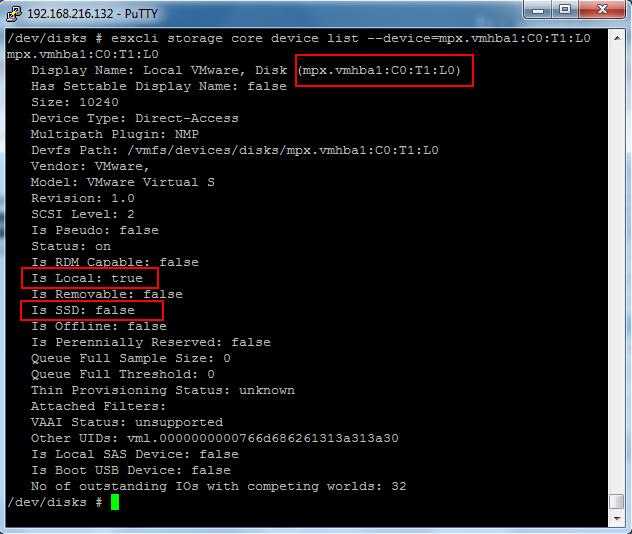

VSAN_Disk_3You can use the below command to display the properties of the disk  “mpx.vmhba1:c0:T1:L0”

esxcli storage core device list –device=mpx.vmhba1:C0:T1:L0

VSAN_Disk_4You can see from the above output that your disk ” “mpx.vmhba1:c0:T1:L0” is local and Is SSD: flase. So it stats that it is not the SSD disk as per the ESXi host. We are going to fake this local disk as SSD using the below command
esxcli storage nmp satp rule add –satp VMW_SATP_LOCAL –device mpx.vmhba1:C0:T1:L0 –option “enable_ssd

You need to reclaim the device using the below command so that added rule  will apply.

esxcli storage core claiming reclaim -d mpx.vmhba1:C0:T1:L0

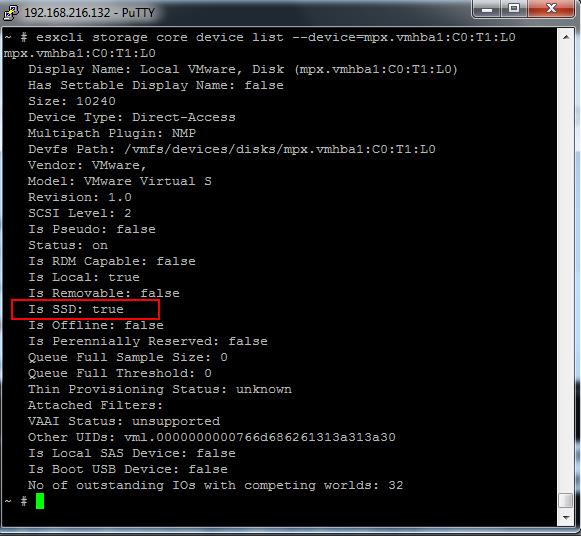

VSAN_Disk_5After you faked the local disk as SSD. Verify the properties of the disk “mpx.vmhba1:C0:T1:L0” using the below command

esxcli storage core device list –device=mpx.vmhba1:C0:T1:L0

VSAN_Disk_6

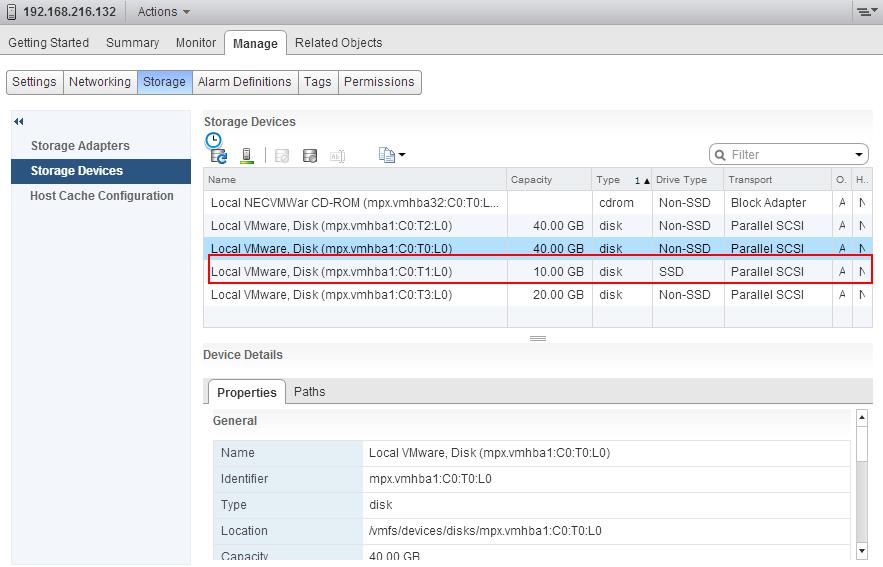

Same can be verified from your vSphere Web client -> ESXi Host -> Manage Tab -> Storage -> Storage devices. You can notice the disk “mpx.vmhba1:c0:T1:L0” now listed as SSD after the above configuration.

VSAN_Disk_7



Above step needs to configured on all the 3 ESXi hosts to fake the one of the local disk as SSD to eligible for VSAN. That’s it. We are done with disk preparation for VSAN. I hope this will be informative for you. Thanks for reading !!!.
