VMware NSX – How to Manually Install NSX VIBS on ESXi Host

(Last Updated On: March 18, 2015)

Job of vSphere Administrators is not so limited to GUI. You should be always available with troubleshoot your issues from command line or CLI.This also applies, when you are dealing with VMware NSX. We have already discussed about Preparing your vSphere CLuster and Host by installing NSX VIBS from Network & Security plugin from vSphere Web Client. It always a situation that the installation of NSX VIB’s may fail due to some reason and we as vSphere admin should have to troubleshoot and fix the installation issues. I have faced one of the issue when i prepare my cluster/ ESXi host for NSX. Let’s take a detailed look at setp by step procedure to manually install NSX VIBs on the ESXi host.

Download NSX VIBs from the below URL:

https://<NSx-Mgr-IP>/bin/vdn/vibs/5.5/vxlan.zip

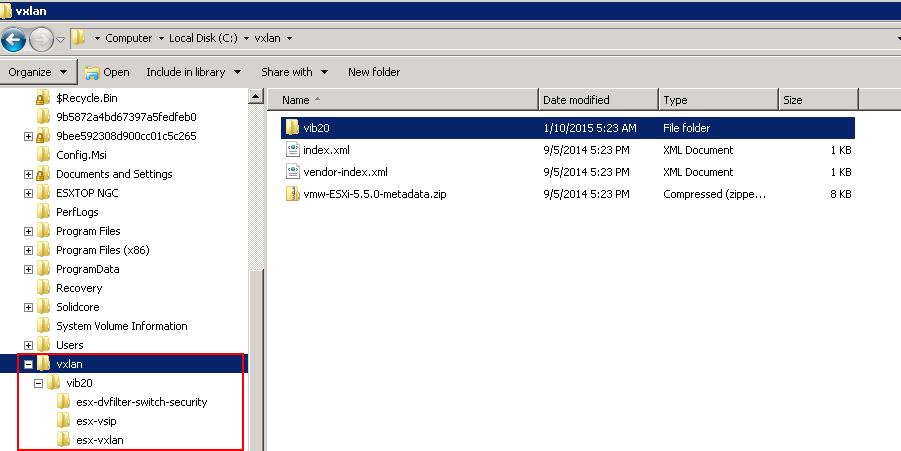

If you extract the downloaded “vxlan.zip”. Below are contents of the vxlan.zip.  It Contains the 3 VIB files

  1. esx-vxlan
  2. esx-vsip
  3. esx-dvfilter-switch-security

One VIB enables the layer 2 VXLAN functionality, another VIB enables the distributed router, and the final VIB enables the distributed firewall.

Install NSX VIBs on ESXi Host_1

Extract the vxlan.zip file and Copy the folder into the Shared Datastore or on the local folder of the ESXi host using WinScp. I have copied the folder into my ESXi host in /tmp directory. Let’s install the NSX VIBs one by one in the ESXi host.

Install NSX VIBs on ESXi Host_2

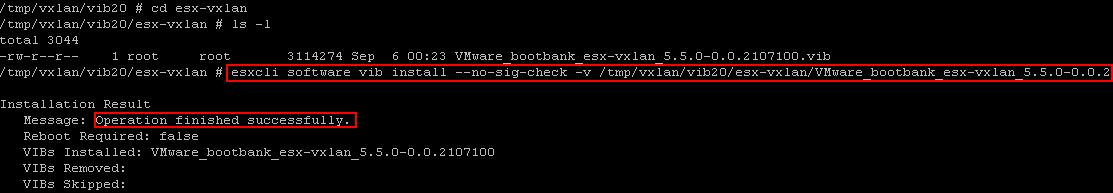

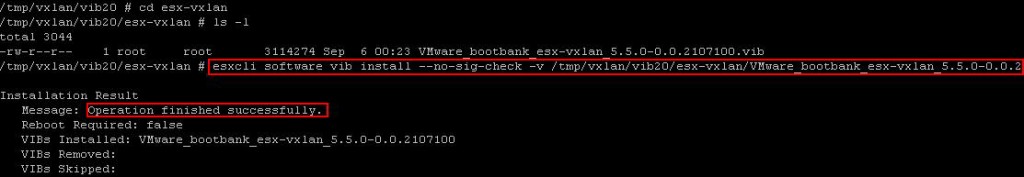

Install the “esx-vxlan” vib on the ESxi host using the below command:

 esxcli software vib install –no-sig-check -v /tmp/vxlan/vib20/esx-vxlan/VMware_bootbank_esx-vxlan_5.5.0-0.0.2107100.vib

Install NSX VIBs on ESXi Host_3

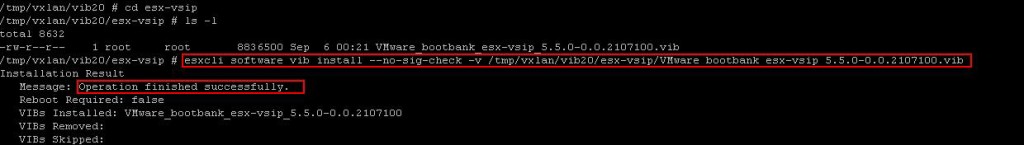

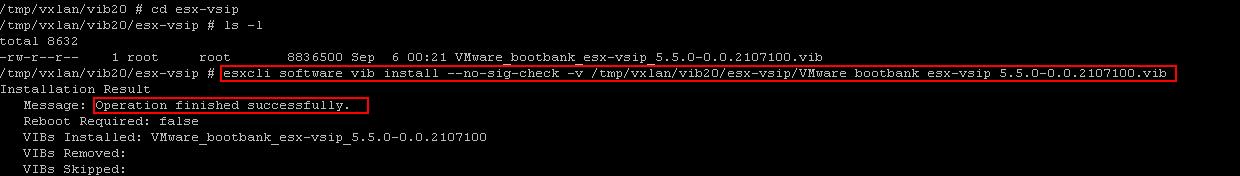

Install the “esx-vsip” vib on the ESXi host using the below command:

esxcli software vib install –no-sig-check -v /tmp/vxlan/vib20/esx-vsip/VMware_bootbank_esx-vsip_5.5.0-0.0.2107100.vib

Install NSX VIBs on ESXi Host_4

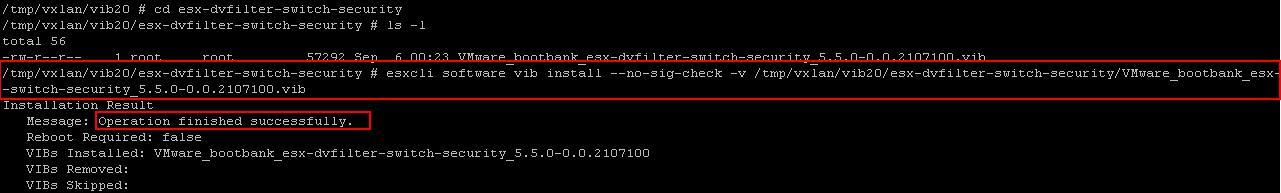

Install the “esx-dvfilter-switch-security” vib on the ESXi host using the below command:

esxcli software vib install –no-sig-check -v /tmp/vxlan/vib20/esx-dvfilter-switch-security/VMware_bootbank_esx-dvfilter-switch-security_5.5.0-0.0.2107100.vib

Install NSX VIBs on ESXi Host_5

That’s it. We are done with manually installing NSX VIBs on ESXi host. This operations don’t require reboot of the ESXi host. Even this can be done when active workloads are running on the ESXi host. I hope this is informative for you. Thanks for reading. Be Social and share it in social media, if you feel worth sharing it.
