VMware NSX Installation Part 7 – Verify NSX VIBs Installation from ESXi hosts

(Last Updated On: March 18, 2015)

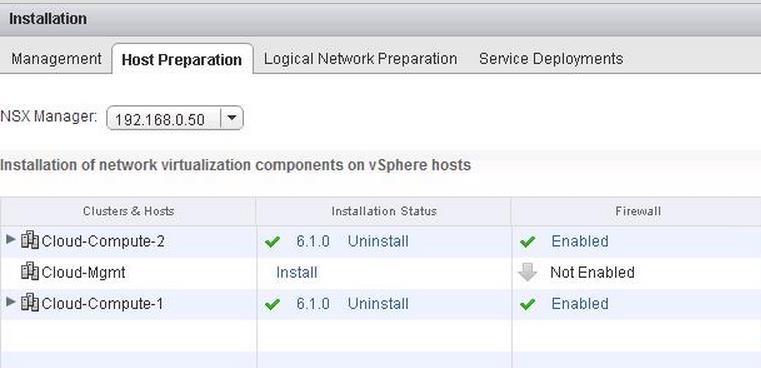

In the previous post, we have discussed about preparing cluster and hosts for NSX. Once the installation is completed, The installation status will change with the Green Check Mark along with the NSX Version of code (6.1.0) running in the cluster along with Enabled Status for Firewall. Let us verify the NSX installation from ESXi host and what are the changes made to esxi host after the Host preparation. Successful host preparation on the cluster will do the following:

  1. Install network fabric VIBs (host kernel components) on esx hosts in the cluster.
  2. Configure host messaging channel for communication with NSX manager.Installs User World Agents (UWA).
  3. Make hosts ready for Distributed Firewall, VXLAN &  Distributed Router configuration.

Verify NSX Installation from ESXi host _7

Verify  NSX User World Agent (UWA) Status:

The user world agent (UWA) is composed of the netcpad and vsfwd daemons on the ESXi host. UWA Uses SSL to communicate with NSX Controller on the control plane. UWA Mediates between NSX Controller and the hypervisor kernel modules,except the distributed firewall. Communication related to NSX between the NSX Manager instance or the NSX Controller instances and the ESXi host happen through the UWA. UWA Retrieves information from NSX Manager through the message bus
agent.

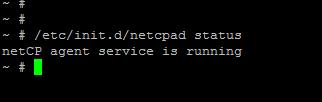

we can verify the status of User World agents (UWA) from CLI:

/etc/init.d/netcpad status

Verify NSX Installation from ESXi host _1

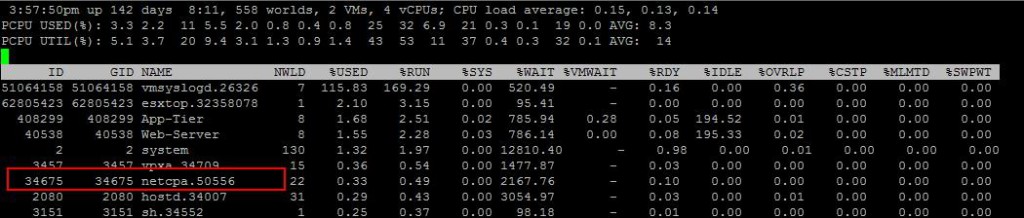

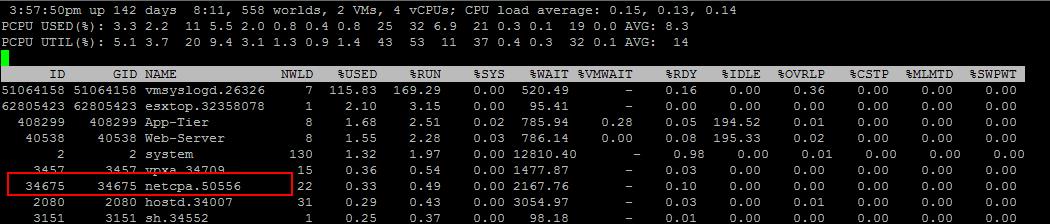

From the ESXtop, You can verify the Deamon called netcpa running:

Verify NSX Installation from ESXi host _2

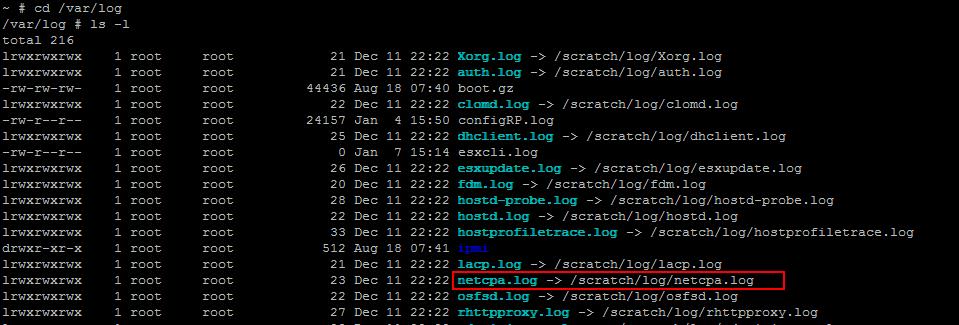

User World Agents (UWA) maintain the logs at /var/log/netcpa.log

Verify NSX Installation from ESXi host _3

Verify Installation Status of NSX VIBs:

Below are the 3 NSX VIBs that get installed on the ESXi host:

  1. esx-vxlan
  2. esx-vsip
  3. esx-dvfilter-switch-security

Let’s verify that the all the above VIBs are installed using the below command

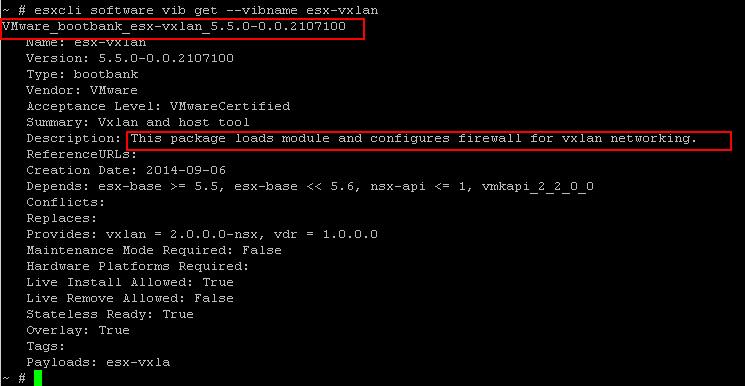

esxcli software vib get –vibname esx-vxlan

Verify NSX Installation from ESXi host _4

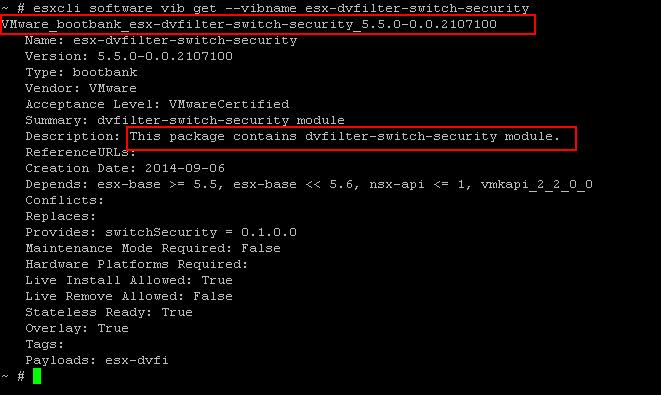

esxcli software vib get –vibname esx-dvfilter-switch-security

Verify NSX Installation from ESXi host _5

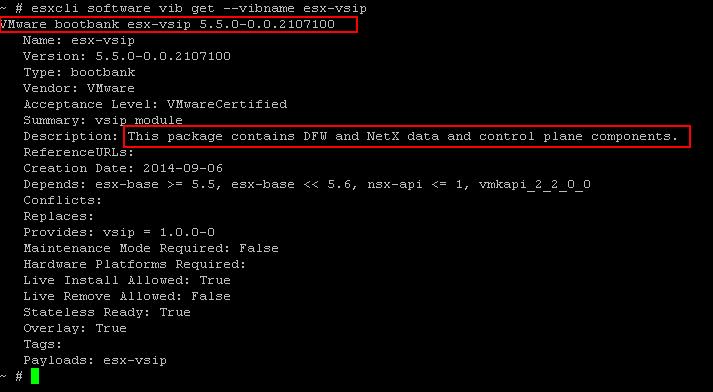

esxcli software vib get –vibname esx-vsip

Verify NSX Installation from ESXi host _6

That’s it. We have verified the status of NSX ViBs installation on ESXi hosts. In the upcoming post, We will take look at configuring VXLAN. I hope this is informative for you. Thanks for reading!!!. Be Social and share it in social media, if feel worth sharing it.
