VMware Site Recovery Manager (SRM 6.0) Part 10 – Creating SRM Protection Group

(Last Updated On: March 31, 2017)

Site Recovery Manager Protection group can be created to group virtual machines for protection. SRM protection group will be different for array-based replicated virtual machines and vSphere replication replicated virtual machines. You cannot create protection groups by grouping both types of replication. In simple terms, A protection group is a group of virtual machines that fail over together at the recovery site during a test or a actual recovery using VMware vCenter Site Recovery Manager.  In actual Production environment, you can create SRM protection group based on Cluster or application  type or array based replication groups based on the datastore groups. An array-based protection group can contain one or more datastore groups.

How to  Creating SRM Protection Group

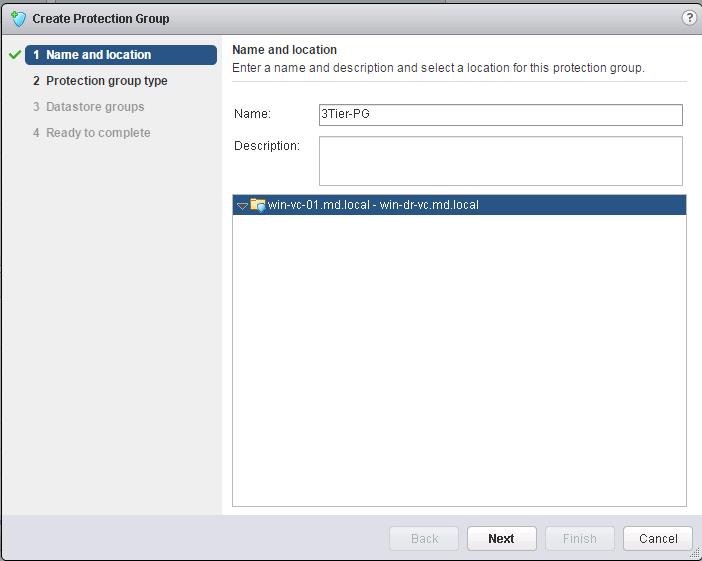

To create a new protection group, Click on “Create Protection Group” under guide to configure SRM in the SRM homepage of the vSphere Web Client. Specify the name and location for the protection group.

SRM Protection Group

Select the Protected site and type of replication for this protection group. I have configured array based replication for my 3-Tier applications servers and all the 3 tier application virtual machines are stored on the datastores, which are configured as part of array based replication. So that i have selected Array based replication(ABR) under the replication type and select the array pair and click on Next.

SRM Protection Group

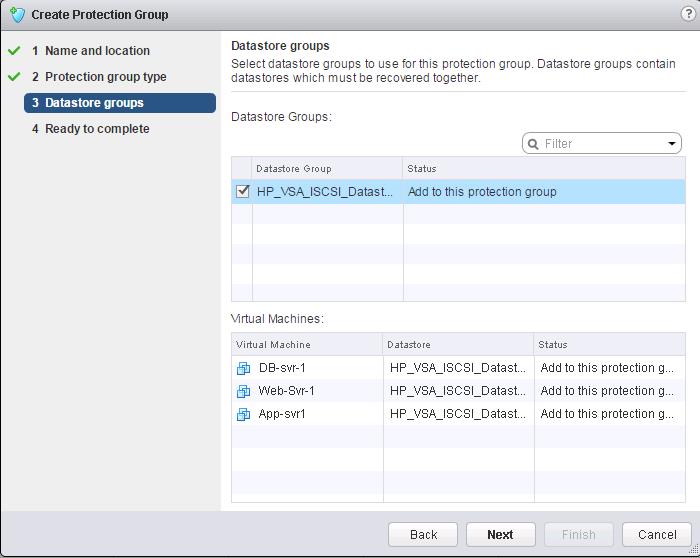

Select the datastore groups from the below list to be grouped to use for this protection group. All the virtual machines stored on these datastore groups will be recovered together as part of this protection group. Click on Next.

SRM Protection Group

Review all the information, which you have selected to create this SRM protection group and click on Finish.

SRM Protection Group

That’s it. We are done with creating SRM protection group. In the upcoming posts, we will discuss in detail about creating SRM recovery plans. I hope this is informative for you. Thanks for Reading!!!. Be Social and share it in social media , if you feel worth sharing it.
