VMware Site Recovery Manager (SRM 6.0) Part 12 – Running SRM Test Recovery

(Last Updated On: March 30, 2017)

Test recovery is nothing but a testing a recovery plan exercises with every aspect of recovery plan. Site recovery manager ensures that test recovery will avoid disruption in ongoing operations on the protected and recovery site. You can run SRM test recovery at time like every hour, every day, every month or quarter. Recovery plans that suspend local virtual machines do so for tests and for actual recoveries. With this exception,running a SRM test recovery does not disrupt replication or ongoing activities at either site. It is always recommended to run recovery plan test as often as needed to ensure that your actual DR plan is working as expected.

You can run the test recovery, once all the SRM configuration is done. You can verify in the summary tab that all the configuration steps for SRM is displayed with Green tickmark.

SRM Test Recovery



How to Run SRM Test Recovery

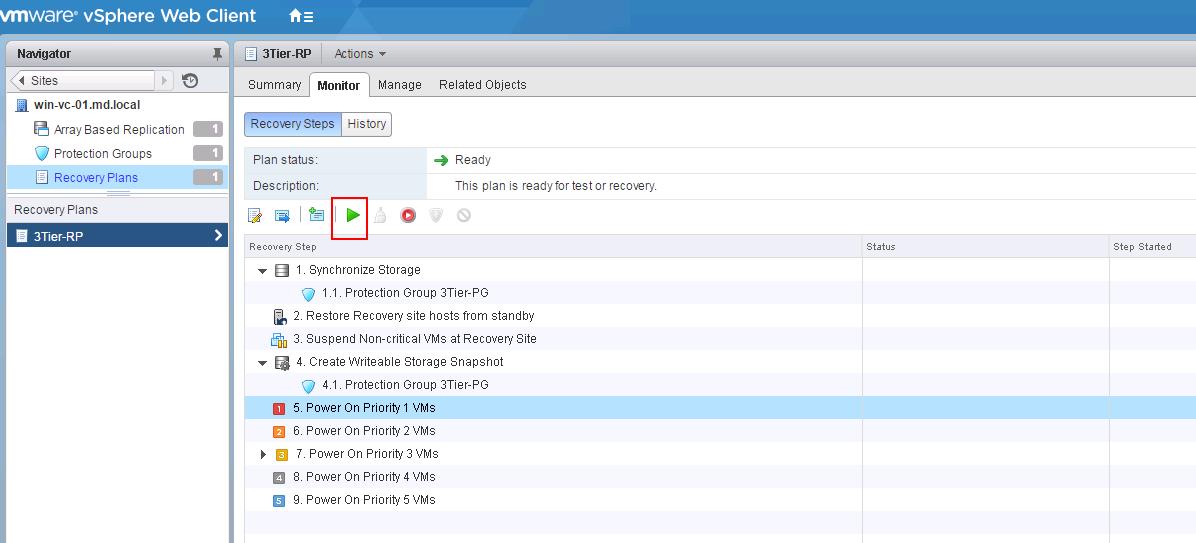

To run a test recovery, Select the recovery Plans -> Monitor tab -> Recovery Steps -> Click on Green Arrow (Play button) to run the test recovery. Please be cautious in selecting the Test recovery option.  if you have selected the actual recovery instead of test recovery, will start recovery of your production virtual machines and it creates the impact to the production.  You can view the lists of recovery steps which will be executed as part of this recovery plan.

SRM Test Recovery

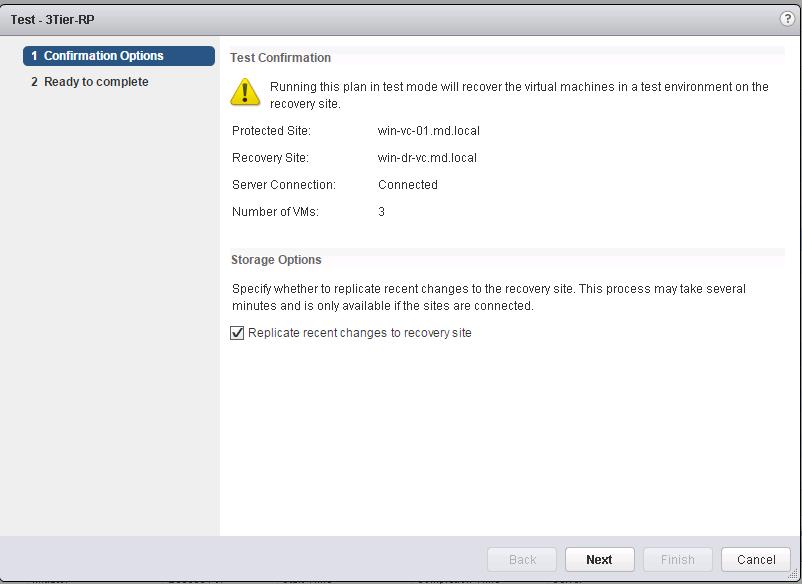

Once you have clicked on the Green Arrow button to start the SRM test recovery,  recovery will run in test mode and it will recover the virtual machines in a test environment on the recovery site.  You have storage option whether to replicate recent changes to the recovery site or not. This process may take several minutes to complete the replication of recent changes to recovery site. It is up to you run the test recovery with recent changes or not.  I have selected the option to replicate recent changes to recovery site. Click on Next.

SRM Test Recovery

Review your settings selections before initiating the SRM Test Recovery and click on Finish.

SRM Test Recovery

Once SRM test recovery is executed, you will be able to see the series of  recovery steps involved as part of this recovery plans and its progress percentage. Since i have selected the option to “Replicate recent changes to recovery site”, i can see that Synchronize Storage step is going on as part of this test recovery plan execution.

SRM Test Recovery

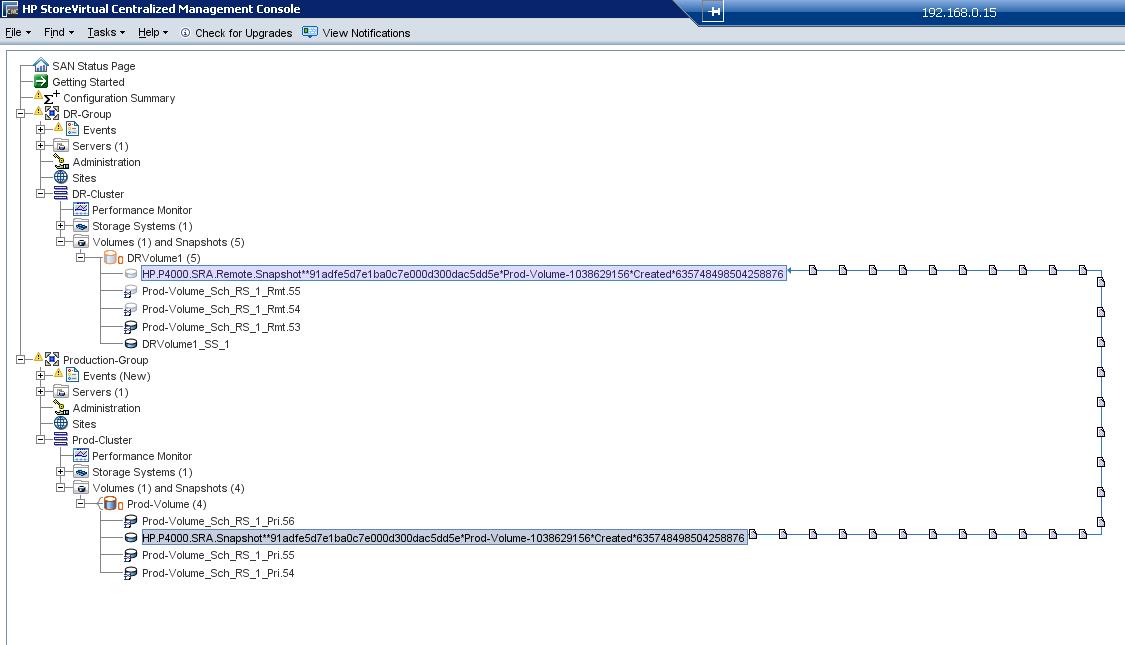

I am curious to monitor the background process of “Synchronize Storage” recovery step from the storage console. I have configured HP StoreVirtual VSA as my array based replication storage. When i monitor it from the HP StoreVirtual Centralized management console,  It can notice that ongoing replication between my Production volume and DR volume. It can see the replication chain established between the Volumes.Replication and protection of the protected environment are not affected during tests. Temporary
snapshots of replicated storage are created at the recovery site. For array-based replication, the arrays are rescanned to discover replicated VMFS datastores.

SRM Test Recovery

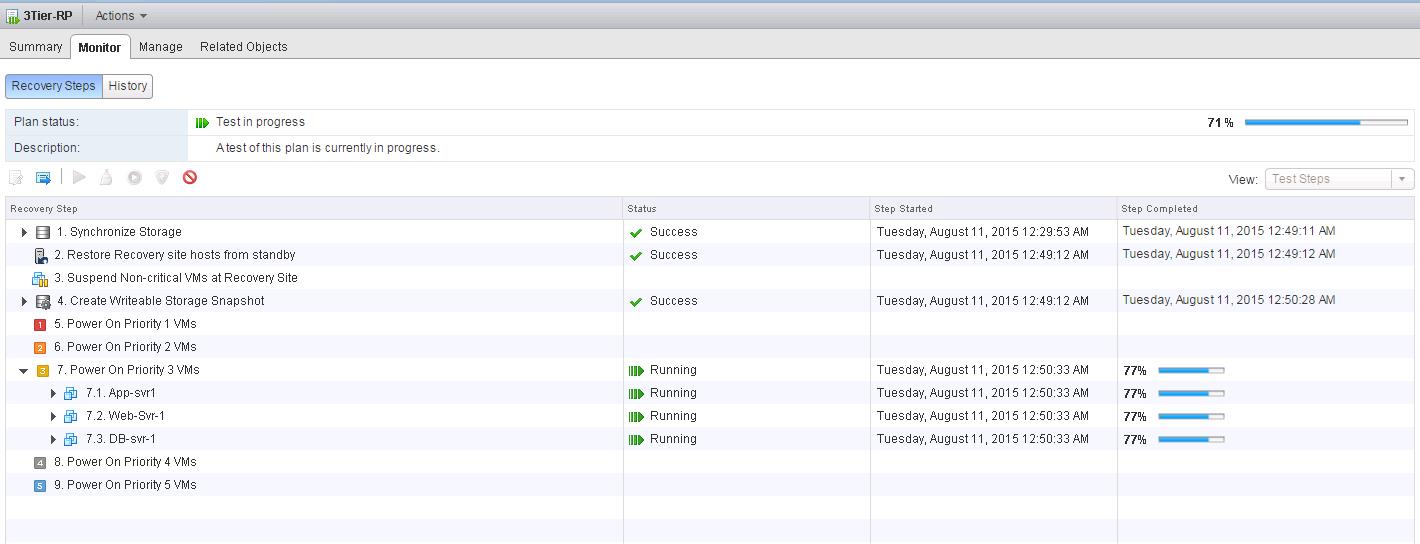

You can monitor the Progress Percentage of each recovery steps before Test recovery is getting completed.

SRM Test Recovery

Once test recovery is completed, You can see the Plan status will display “Test Complete”. and status of each recovery steps will be Success.

SRM Test Recovery

Each recovery steps in recovery plan will have substeps involved. For example, When i expan the Power on VMs will have around 7 sub steps including Configure storage, Test network, Guest startup, Customize IP if you have added, Guest shutdown, Power on and Wait for VMware tools. All this steps in test recovery don’t cause any distribution to actual virtual machines.

SRM Test Recovery

Once the test recovery is completed, I can see the virtual machines  part of the protection group as part of this recovery plan is powered on in both protected and recovery site without interruption to your production virtual machines.  This is beauty of the SRM. I love it.

SRM Test Recovery

That’s it. We are done with running the test recovery and ensured that our DR recovery plan is working as expected. In the upcoming posts, we will see how to clean up the test recovery. I hope this is informative for you and Thanks for Reading!!!. Be social and share it in social media, if you feel worth sharing it.
