What I Wish Everyone Knew About ESXi Partition

We all are almost familiar with the ESXi installation procedure. Have you ever noticed or prompted to define the partition table information during ESXi installation ?. I don’t think so. When you install ESXi, We do not get the opportunity to modify the partition layout, Partitions will be automatically set by the installation process. Let’s take this article as the opportunity to take a deep look at the ESXi Partition. For this article, I will be explaining the ESXi partition information  about ESXi 6.5.  Take a look at my article to understand VCSA 6.5 partitions and mount points. There are no changes in the partition table as compared to ESXi 6.0 and ESXi 6.5. From ESXi 5.X, older MBR partitioning system is replaced with a GPT style partition table. Let’s take a look at ESXi partition table.

How to Check ESXi Partition Information

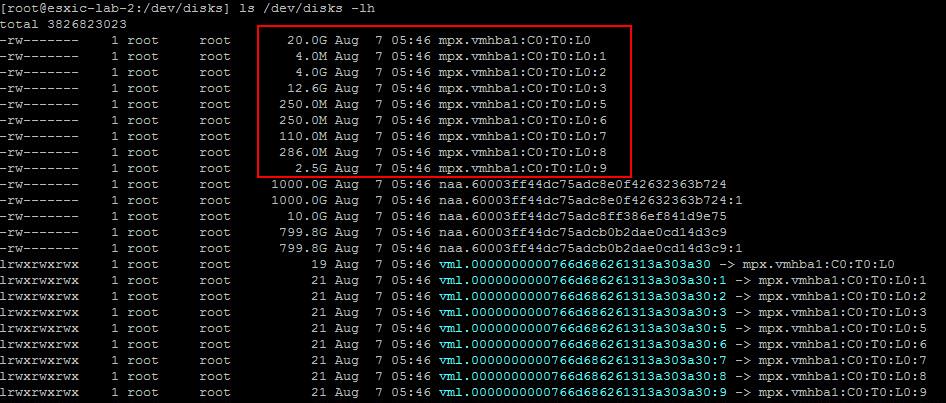

For ESXi 5.0 or later, You can use partedUtil to get the partition information. fdisk command can be used in the previous versions of ESXi. First we need to identify the disk that we will examine further with partedUtil. We can do this by listing the contents of /dev/disks

ls /dev/disks -lh

You can easily identify the ESXi installed disk. ESXi installation disk will the be disk with multiple partitions. You can noticed disks which are in Green color  are the ESXi installed disk.

ESXi Partition

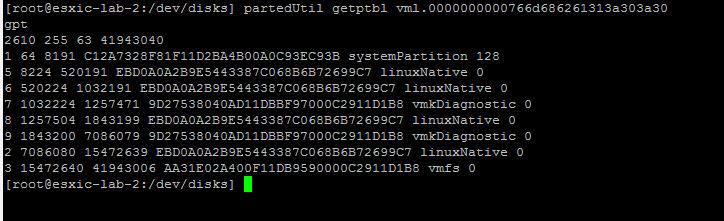

You can now use “partedUtil” to examine the partition table of that particular disk. Use the below command to get the partition table information

partedUtil getptbl vm1.0000000000766d686261313a303a30

ESXi Partition_2

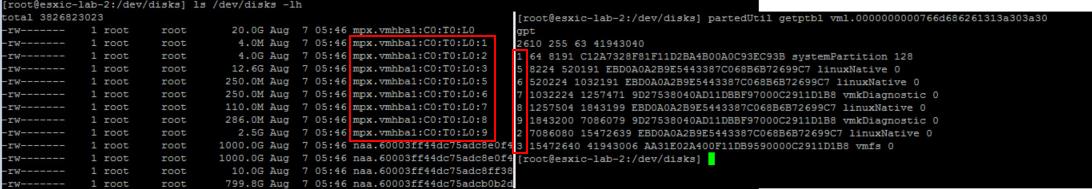

You can compare the above two output to get the size information about the each of the partition

ESXi Partition

Understand ESXi Partition Information

Below the various ESXi partitions:

  • Partition 1: systemPartition -> Bootloader Partition (4MB )
  • Partition 5: linuxNative  -> /bootbank (250MB)
  • Partition 6: linuxNative -> /altbootbank ( 250MB)
  • Partition 7: vmkDiagnostic  -> First Diagnostic Partition (110MB)
  • Partition 8: linuxNative  -> /store (286MB)
  • Partition 9: vmkDiagnostic -> Second Diagnostic Partition ( 2.5 GB)
  • Partition 2: linuxNative  -> /scratch (4GB)
  • Partition 3: VMFS datastore

Partition 1:  Bootloader Partition (4MB)

This Partition is needed for Booting. Which is 4 MB in size (System Partition)

Partition 5:  Bookbank (250MB)

The hypervisor image is located on this 250 MB partition. It is formatted with old FAT.  The image is called s.v00 (124MB compressed) and is decompressed during boot. It will be extracted during the boot process and loaded into the system memory.

ESXi Partition

Partition 6:  /altbootbank (250 MB)

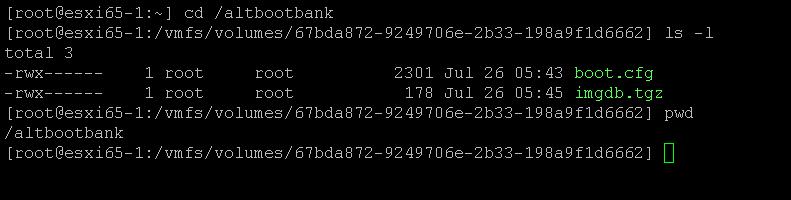

/altbootbank partition is empty after a fresh installation of ESXi server. Below is the Example of contents of /altbootbank partition on the fresh install ESXi Server.

ESXi Partition

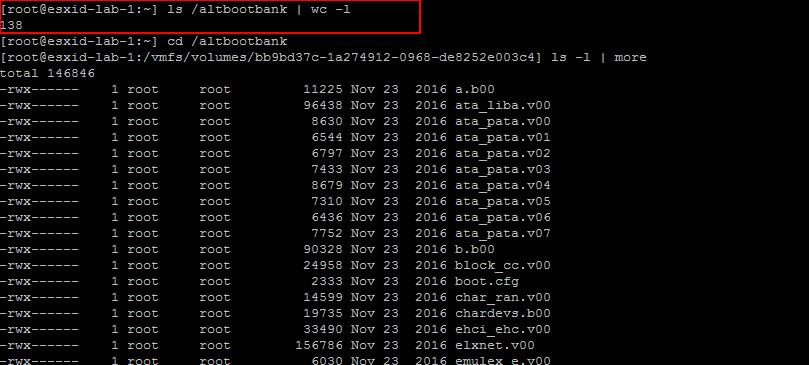

Once you perform an upgrade of ESXi host , the current image is copied from the bootbank partition. This makes the possibility to  return to the previous version of ESXi  (last known good configuration) by typing “Shift + R” while booting,  if there any issues occurred during the ESXi host upgrade. Below is the Example of contents of /altbootbank partition on the Upgraded ESXi Server. It contains around 138 files in the directory. Take a look at my article How to Downgrade or Rollback your failed ESXi 6 upgrade to previous Version

ESXi Partition

Partition 7: vmkDiagnostic (110 MB) – First Diagnostic Partition

In case of ESXi Crash or PSOD, host dump file written on this partition

Partition 8: /store (286 MB)

This /store partition contains various ISO files for the VMware Tools for all supported operating systems. When you install  the VMware Tools on the Virtual machine, VMware tools ISO will get mounted to the CD/DVD drive of virtual machine from this location.

ESXi Partition

Partition 9: Second Diagnostic Partition (2.5 GB)

Second Diagnostic partition is 2.5 GB as addition to the vmkDiagnostic partition (110 MB in size) . Using ESXCLI command, you can check the current status of active diagnostic partition, as we have two diagnostic partitions.

esxcli system coredump partition list

ESXi Partition

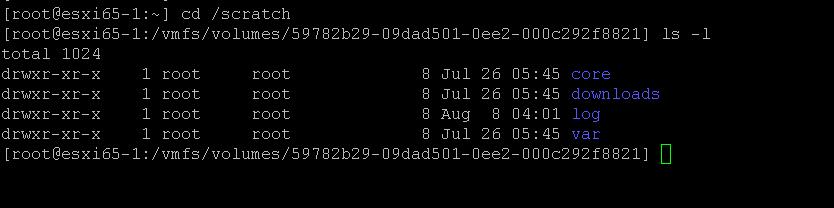

Partition 2:  /scratch (4 GB)

The scratch partition is a 4 GB VFAT partition that is created to store vm-support output, which is needed to analyse the cause of system failures and which is needed by VMware Support to identify and troubleshoot the issues occurred on ESXi host . If the scratch partition is not present, vm-support output is stored in a ramdisk. It will be lost after the system reboot. Take a look at my article How to configure persistent Scratch partition in VMware ESXi. This partition will be created only when you have free space of more than 5 GB on the ESXi local disk.

ESXi Partition

Partition 3: VMFS datastore

This partition is only created, if the installation medium is not a flash memory. VMFS partition extends over the total available unallocated space of the disk  and is formatted it with VMFS 5/VMFS 6 based on the ESXi version and selection. It is also referred as “Datastores“.

ESXi Partition

That’s it. I hope this article will help you to get the detailed understanding about ESXi partitions. Thanks for Reading!!. Be social and share it in social media using Social media sharing options, If you feel worth sharing it.
