Creating Manual Desktop Pool -VMware Horizon View 6.x

VMware View Virtual desktop pools is a collection of desktops that users select when they log in using the View client. A pool can be created based on a subset of users, such as finance or HR, but this is not explicitly required unless you will be deploying multiple Virtual Desktop master images. The pool can be thought of as a central point of desktop management within View; from it you create, manage, and entitle access to View desktops.  We have discussed overview about Virtual Desktop Pools and Various types of desktop pools. In this post, we are going to discuss in detail about procedure to create Manual desktop pool. Manual desktop pool provides access to an existing set of machines. Any type of machine that can install Agent is supported. Examples include vCenter virtual machines and physical machines.

How to Create Manual Desktop Pool?

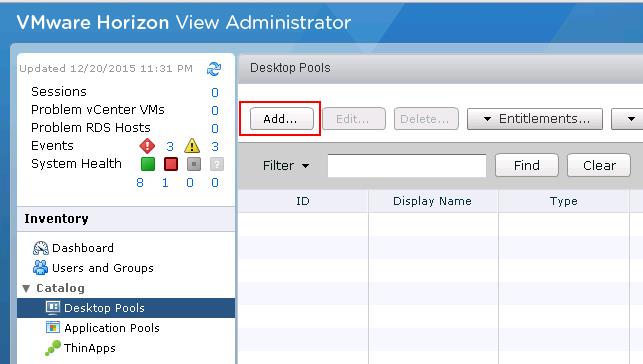

To create Manual Desktop Pool, Log on to View Connection server admin console. Expand Catalog from Inventory. Under Desktop Pools on the main windows, click Add button.

View Manual Desktop Pool

Select the Manual Desktop Pool from the Desktop pool Types and Click on Next.

Creating View Manual Desktop Pool_2

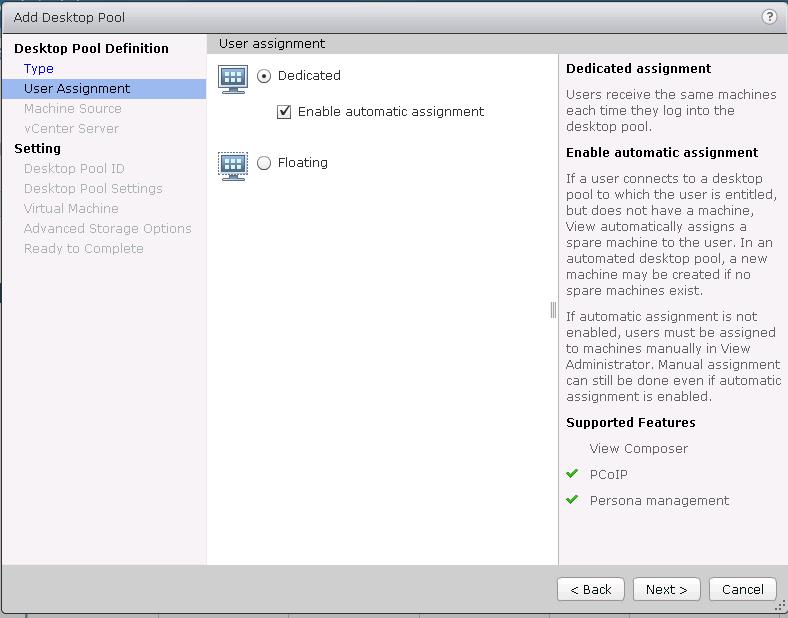

Choose the Dedicated User assignment and click on Next.

Creating View Manual Desktop Pool_3

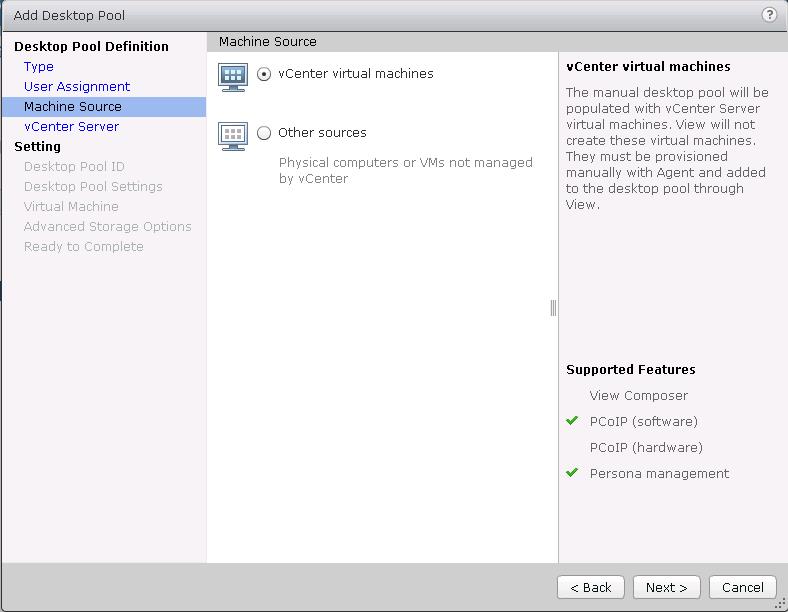

All my Desktops images are running on vCenter Server so, i am selecting desktop source as “vCenter Virtual Machines” and click on Next.

Creating View Manual Desktop Pool_4

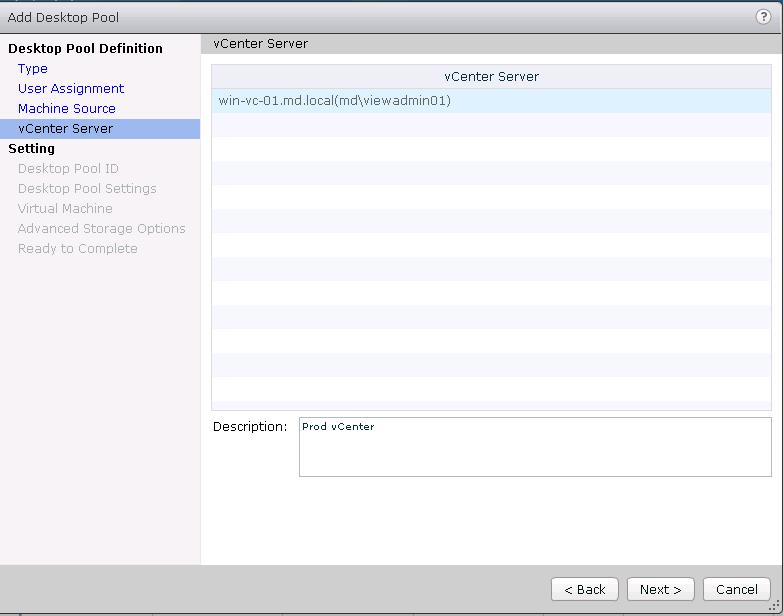

Verify your vCenter server and Click on Next.

Creating View Manual Desktop Pool_5

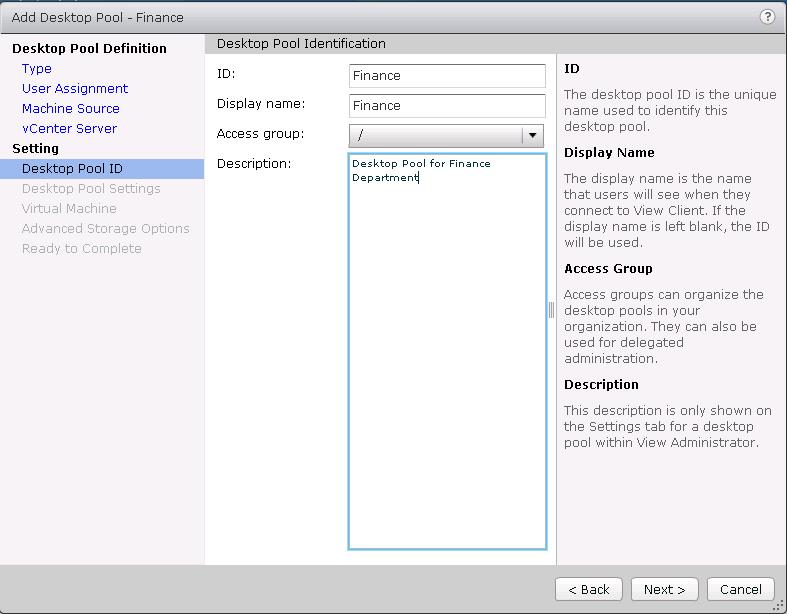

Provide the ID, Display Name ,Access Group and Description for the Manual desktop pool and click on Next.

Creating View Manual Desktop Pool_6

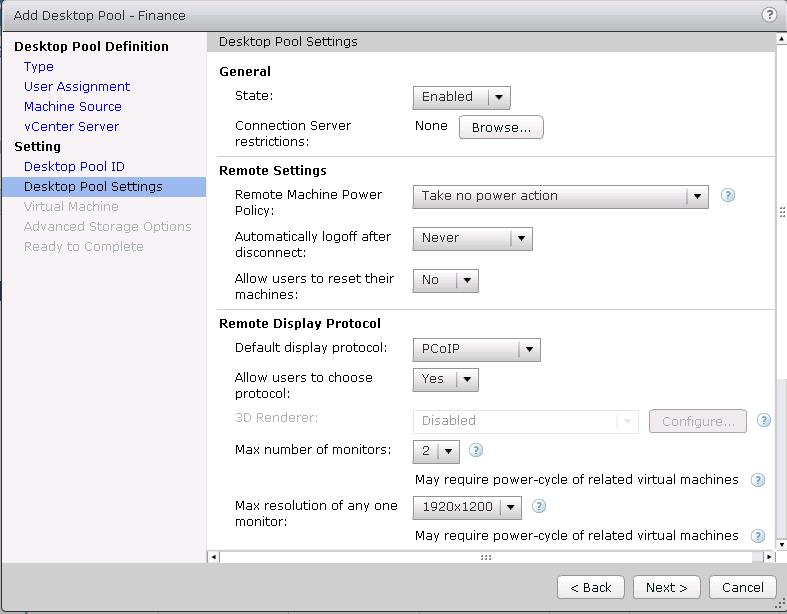

Review the Desktop Pool Settings. Modify the settings which suits your orgnaization needs and click on Next.

Creating View Manual Desktop Pool_7

Choose the Source Virtual machines from the vCenter Server to add to the desktop pool and click on Add and click on Next.

View Manual Desktop Pool_8

Review the Advanced Storage options and click on Next.

Creating View Manual Desktop Pool_9

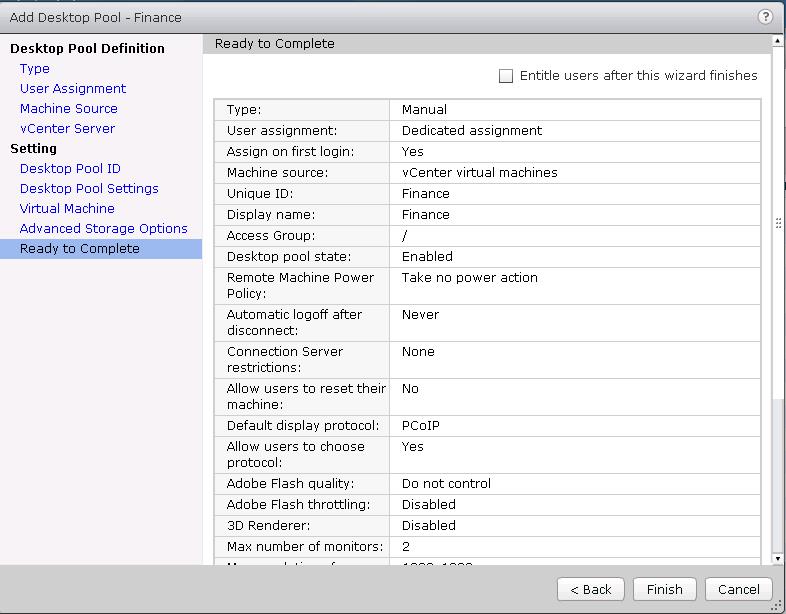

Review the Manual desktop pool settings and Click on Next.

Creating View Manual Desktop Pool_10

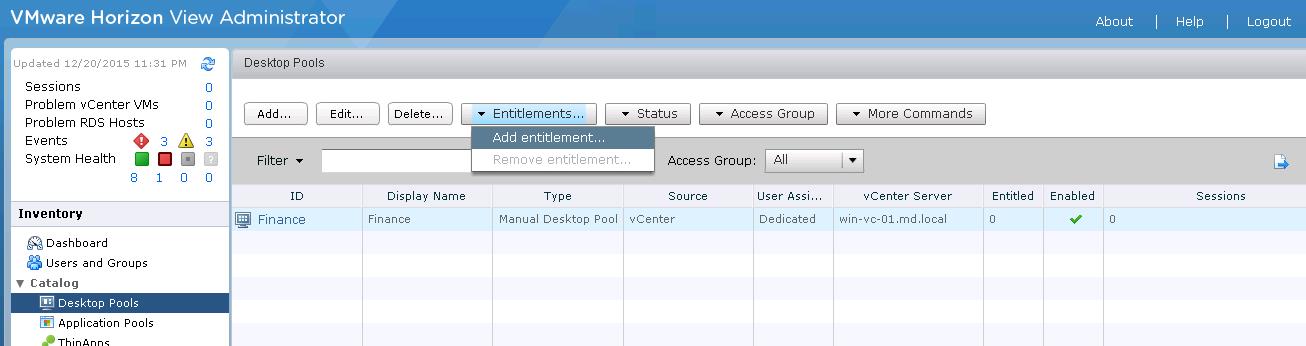

Once Manual desktop pool is created, You need to assign User Entitlement. It defines the access to the desktop. Only Users entitlement for the desktop will only be able to access the desktops in the desktop pool. To add the entitlement,Select the Desktop Pool and  Click on Add Entitlement under Entitlements.

VMware View Desktop pool Entitlement

Click on Add to add new users and groups who can use the selected pools.

Adding VMware View Desktop pool Entitlement_2

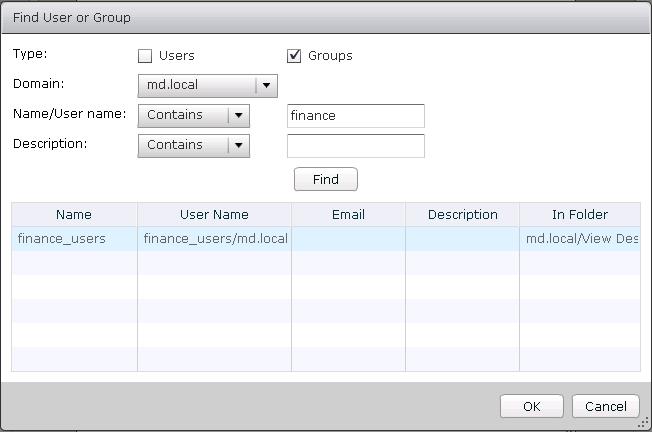

Enter the Username or Group and click on Find. I will be assigning entitlement to Finance Users for this  manual desktop pools. Select the Group name and click on Ok.

Adding VMware View Desktop pool Entitlement_3

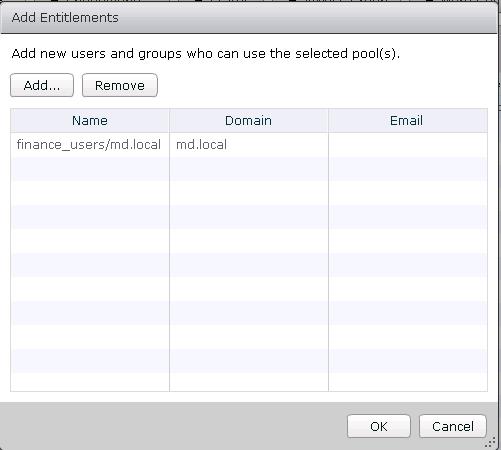

Click on Ok for Add Entitlements.

Adding VMware View Desktop pool Entitlement_4

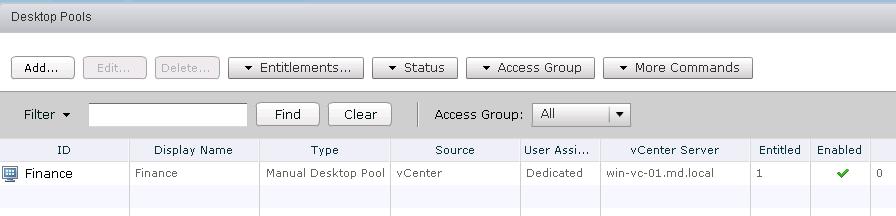

We are done with Creating Manual desktop pool called “Finance” and assigned entitlement to Finanace_users group. IT’s time to access the desktop pool using VMware Horizon Client.

Adding VMware View Desktop pool Entitlement_5

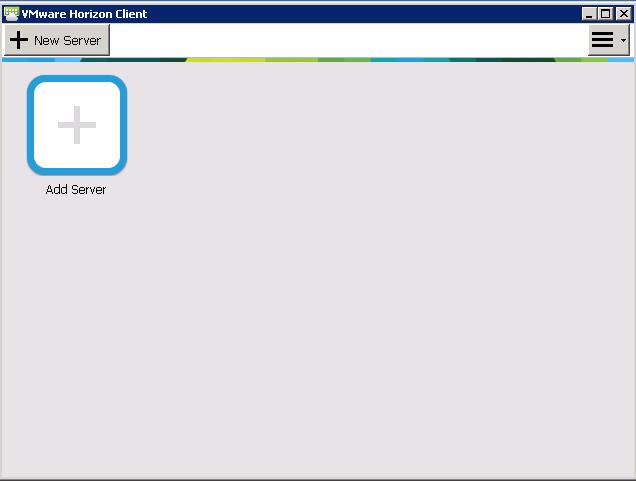

To access the View desktop pool, open the VMware Horizon Client and Click on Add server to add Connection server

Access View Desktops using VMware View Client

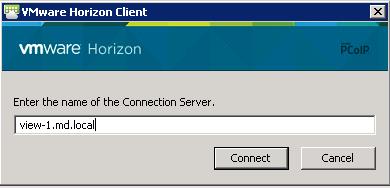

Enter View Connection Server name and click on Connect.

Access View Desktops using VMware View Client_2

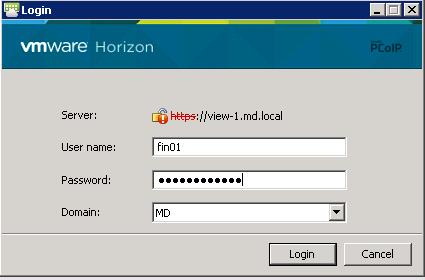

Login with the User credentials. Fin01 is user which is part of group “Finanace_Users” and Click on Ok.

Access View Desktops using VMware View Client_3

Once logged in, You will be able to see the list of desktop pool or pools which are all entitled  for you. Click on Desktop Pool “Finance”

Access View Desktops using VMware View Client_4

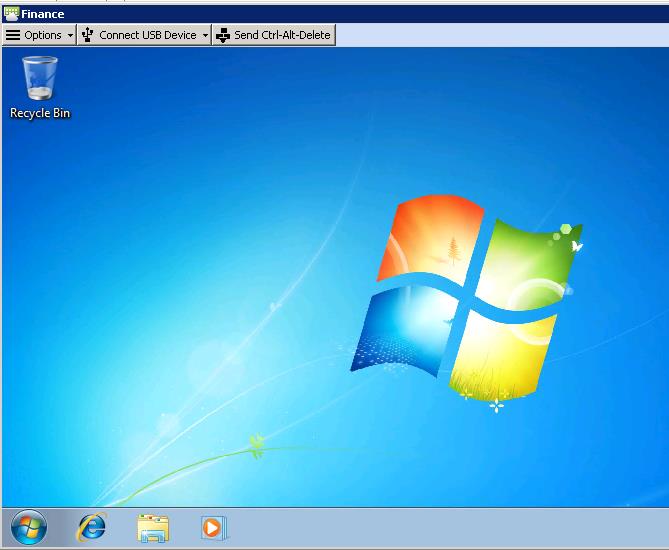

It will be automatically logged in to you the desktop which is part of the desktop pool “Finance”.Access View Desktops using VMware View Client_6

That’s it. we are done with creating Horizon View Manual Desktop pool. I hope this is informative for you. Thanks for Reading!!! Be social and share it in social media, if you feel worth sharing it.
